Accelerate Quantum ESPRESSO simulation with GPUs

We will walk through a step-by-step example of running a Quantum ESPRESSO job on GPUs. As of the time of writing, the GPU (CUDA) build of Quantum ESPRESSO is only available via the Command Line Interface (CLI). We will see that we can dramatically speedup our Quantum ESPRESSO simulation by using GPUs.

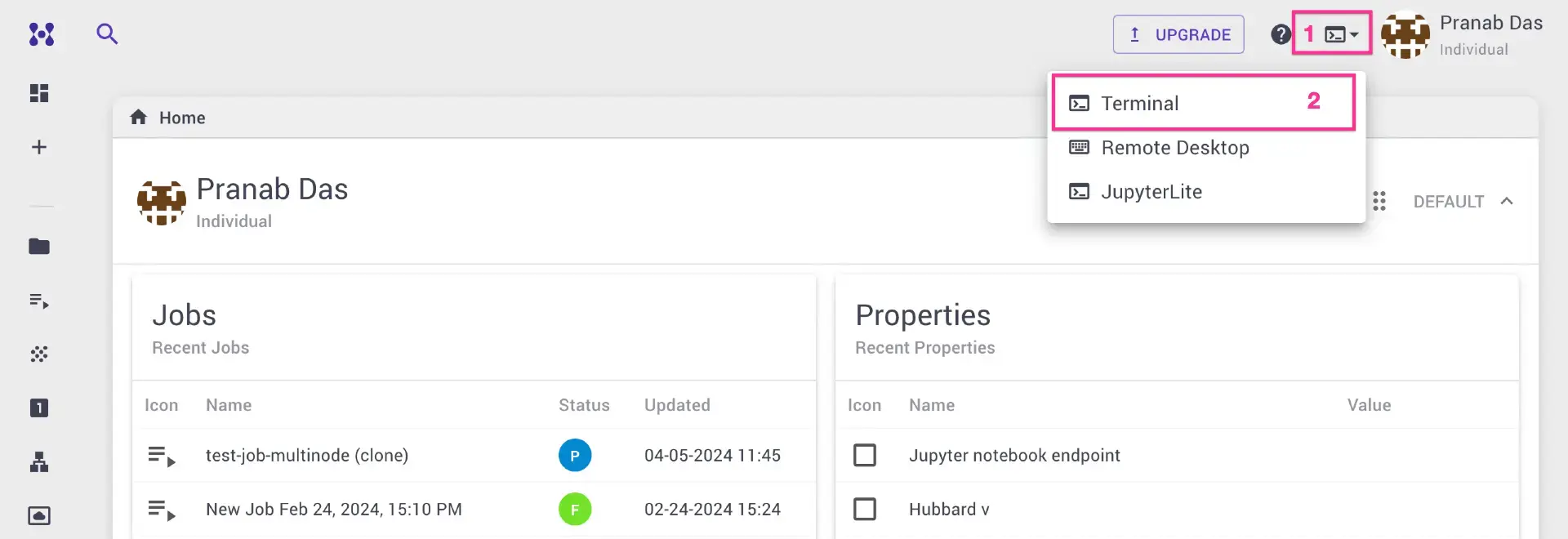

1. First connect to login node via SSH client, or web terminal. Note that it is also possible to run CLI jobs by creating a bash workflow.



2. Example job that we are going to run is available in git repository exabyte-io/cli-job-examples. You may clone the repository to your working directory:

   git clone https://github.com/exabyte-io/cli-job-examples
   cd cli-job-examples
   git lfs pull
   cd espresso/gpu


3. You will find all required input files and job script under espresso/gpu. Please review the input files and PBS job script, update the project name, and other parameters as necessary.

4. We will use GOF queue, which comprises 8 CPUs and 1 NVIDIA V100 GPU per node.

5. Since our compute node contains 8 CPUs with 1 GPU, we will run 1 MPI process with 8 OpenMP threads.

   module load espresso/7.4-cuda-12.4-cc-70
   export OMP_NUM_THREADS=8
   mpirun -np 1 pw.x -npool 1 -ndiag 1 -in pw.cuo.scf.in > pw.cuo.gpu.scf.out


6. Finally, we can submit our job using:

   qsub job.gpu.pbs


7. Once, the job is completed, we can inspect the output file pw.cuo.gpu.scf.out. We will see that GPU was used, and the job took about 1 minute wall time.

   Parallel version (MPI & OpenMP), running on       8 processor cores
   Number of MPI processes:                 1
   Threads/MPI process:                     8
   ...

   GPU acceleration is ACTIVE.  1 visible GPUs per MPI rank
   GPU-aware MPI enabled
   ...

   Parallel routines

   PWSCF        :     37.94s CPU     50.77s WALL


8. For comparison, we ran the same calculation using only CPUs, and it took about 20 times longer.

   Parallel version (MPI), running on     8 processors

   MPI processes distributed on     1 nodes
   ...

   Parallel routines

   PWSCF        :  18m 0.56s CPU  18m25.33s WALL


You may experiment different combinations of MPI and OpenMP, various parallelization options, and find what gives you the best performance.

Step-by-step screenshare video
