Gold Nanoclusters.

Introduction.

This tutorial demonstrates the process of creating a gold nanoparticle structures based on the work presented in the following manuscript.

Manuscript

A. H. Larsen, J. Kleis, K. S. Thygesen, J. K. Nørskov, and K. W. Jacobsen, "Electronic shell structure and chemisorption on gold nanoparticles", Phys. Rev. B 84, 245429 (2011), DOI: 10.1103/PhysRevB.84.245429. ¹

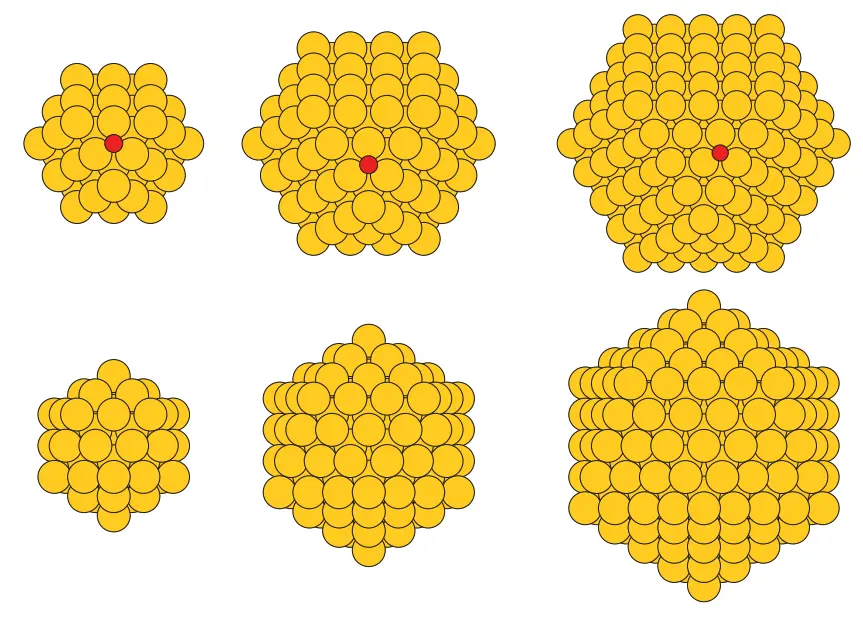

We use the Materials Designer to create gold nanoparticle structures of cuboctahedral and icosahedral shapes as shown in the image below.

1. Load and preview Gold structure.

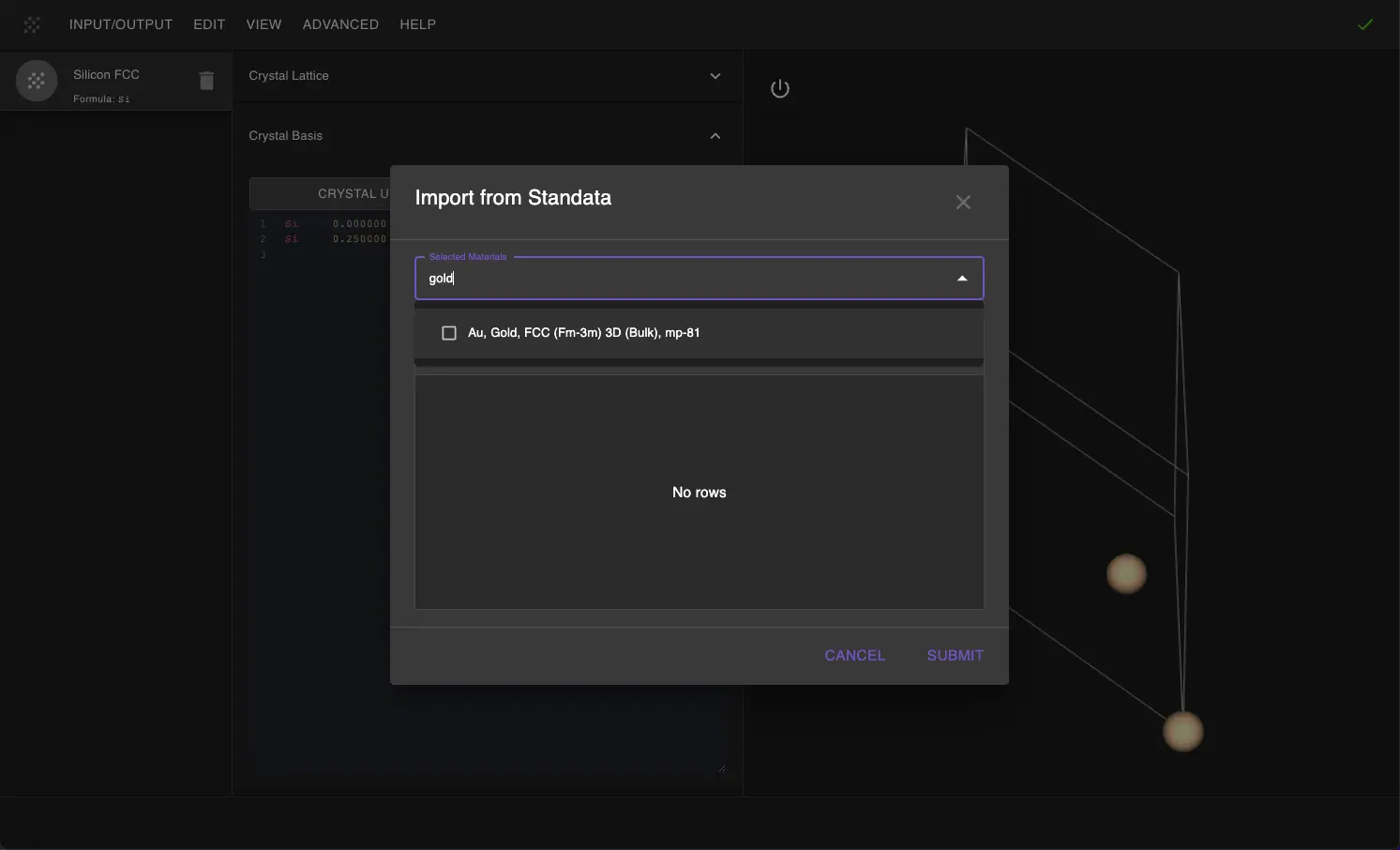

First, we navigate to Materials Designer and import the Gold material from the Standata.

Then we will use the JupyterLite environment to create gold nanoparticle structures.

2. Create cuboctahedra.

2.1 Launch JupyterLite Session.

Select the "Advanced > JupyterLite Transformation" menu item to launch the JupyterLite environment.

2.2. Open and modify the notebook.

Next, edit create_cluster_ase.ipynb notebook to modify the parameters by changing values:

• shape = ASENanoparticleShapesEnum.OCTAHEDRON - the shape of the nanocluster
• parameters = {"length": 5, "cutoff": 2} - the parameters of the nanocluster according to ASE Cluster Octahedron documentation.

Cuboctahedron shape is achieved by setting parameters of the octahedron to be in relationship: length = 2 * cutoff + 1

Copy the content below and adjust the "1.1. Set up slab parameters" cell in the notebook:

shape = ASENanoparticleShapesEnum.OCTAHEDRON
parameters = {
    "length": 5,
    "cutoff": 2
}

2.3. Run the notebook.

Run the notebook by selecting "Run > Run All Cells" from the menu.

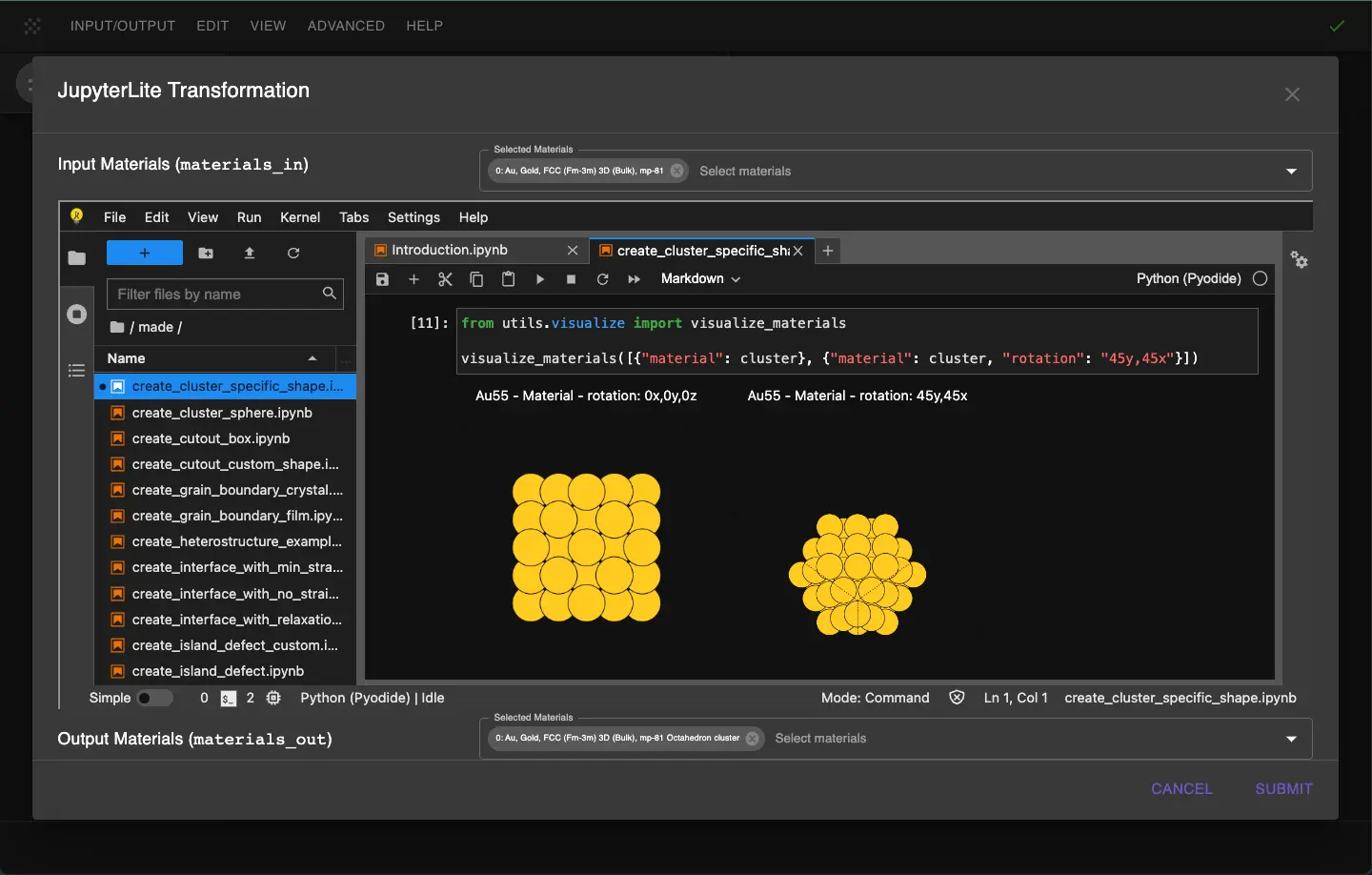

2.4. Analyze the Results.

After running the notebook, the octahedral gold nanoparticle structure will be created.

The user will be able to visualize the created structure and download the corresponding files.

For better view of the solid symmetry rotation of image might be needed like "rotation": "45y,45x" for the cuboctahedron.

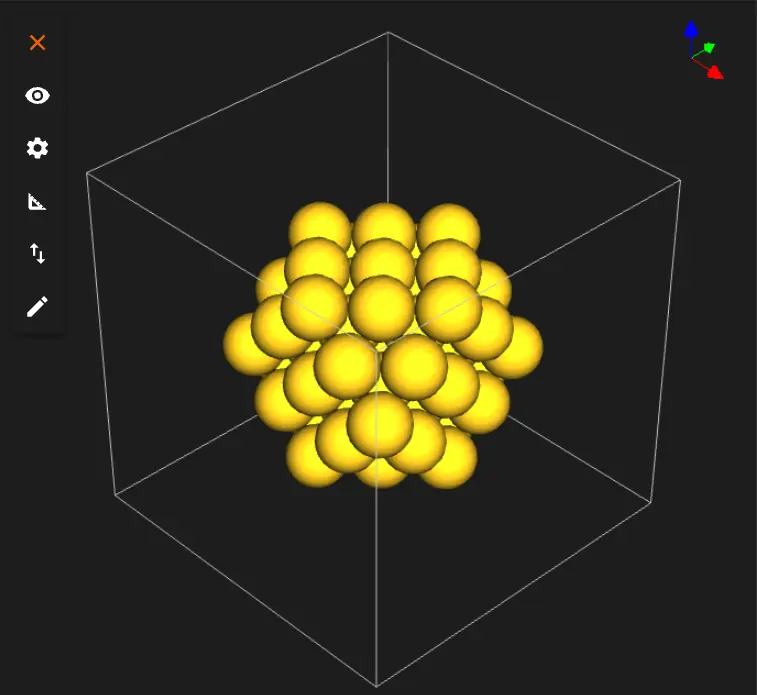

2.5. Pass the Material to the Materials Designer.

After reviewing the results, the user can pass the material to Materials Designer for further analysis.

Or the user can save or download the material in Material JSON format or POSCAR format.

3. Create clusters with other shapes and sizes.

3.1. Repeat the steps above.

Repeat the steps above to create gold nanoparticle structures with other shapes and sizes.

To create the rest of the structures set the shape and other parameters accordingly:

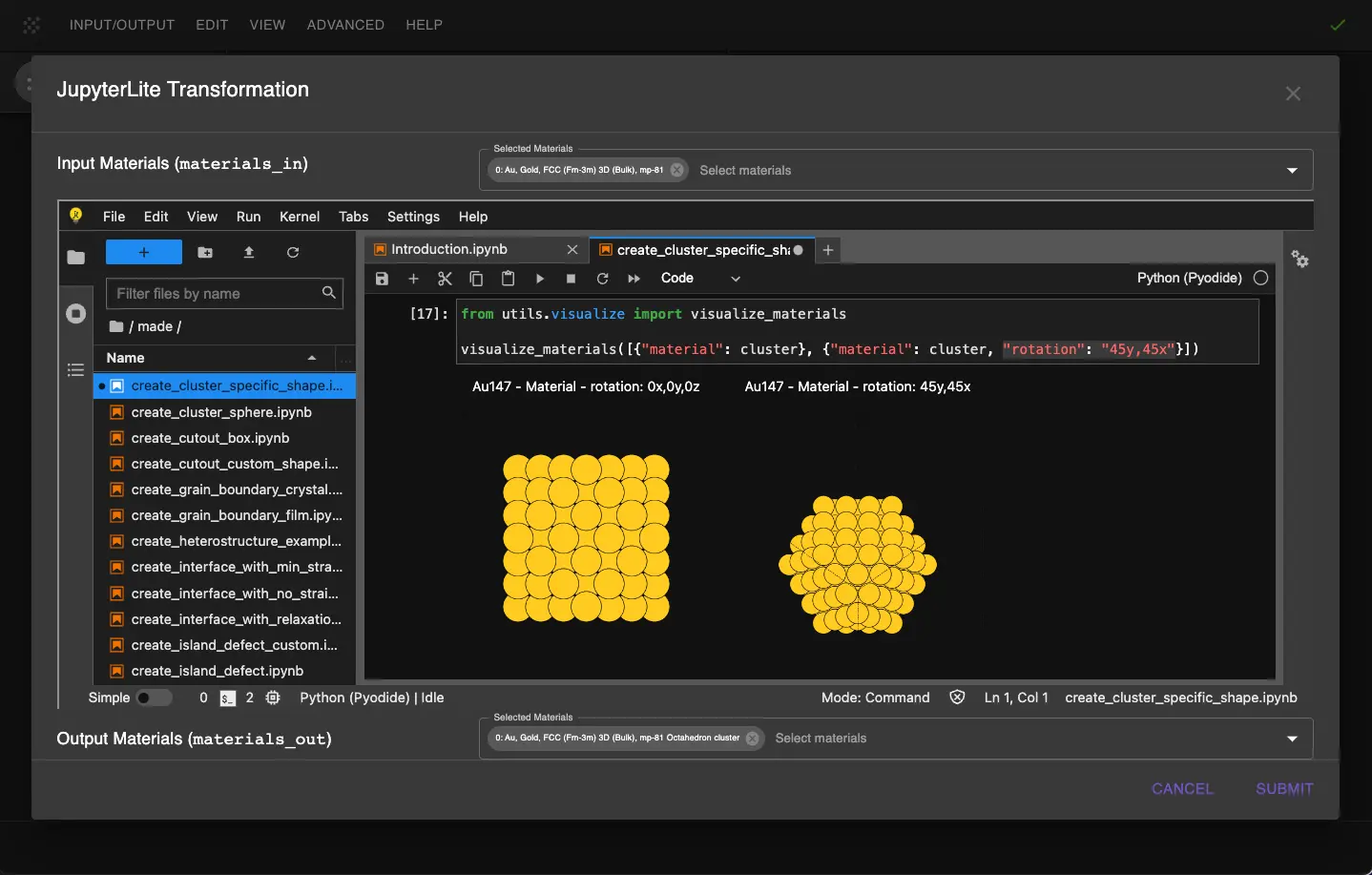

For Cuboctahedron with 147 atoms:

shape = ASENanoparticleShapesEnum.OCTAHEDRON
parameters = {
    "length": 7,
    "cutoff": 3
}

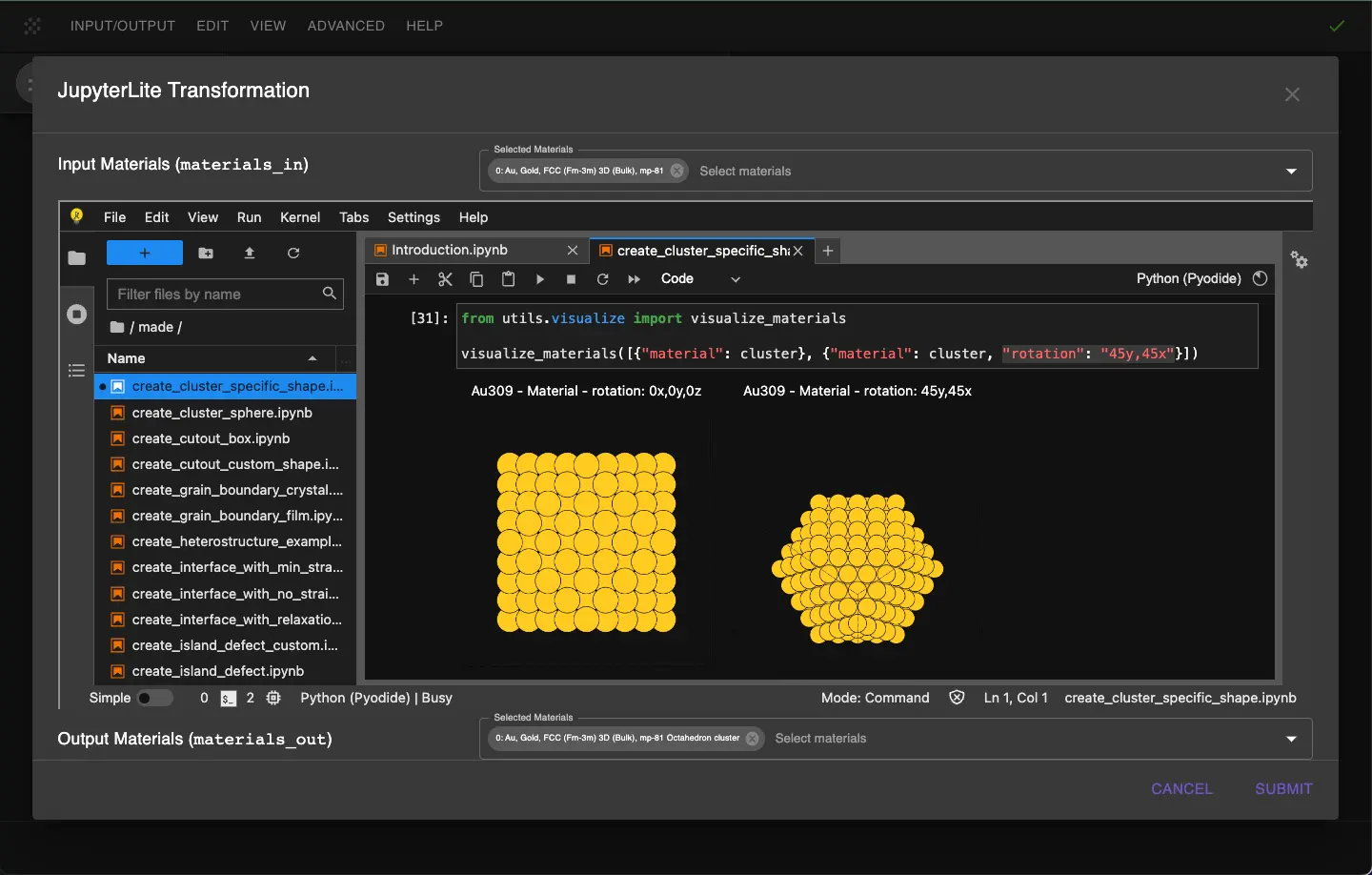

For Cuboctahedron with 309 atoms:

shape = ASENanoparticleShapesEnum.OCTAHEDRON
parameters = {
    "length": 9,
    "cutoff": 4
}

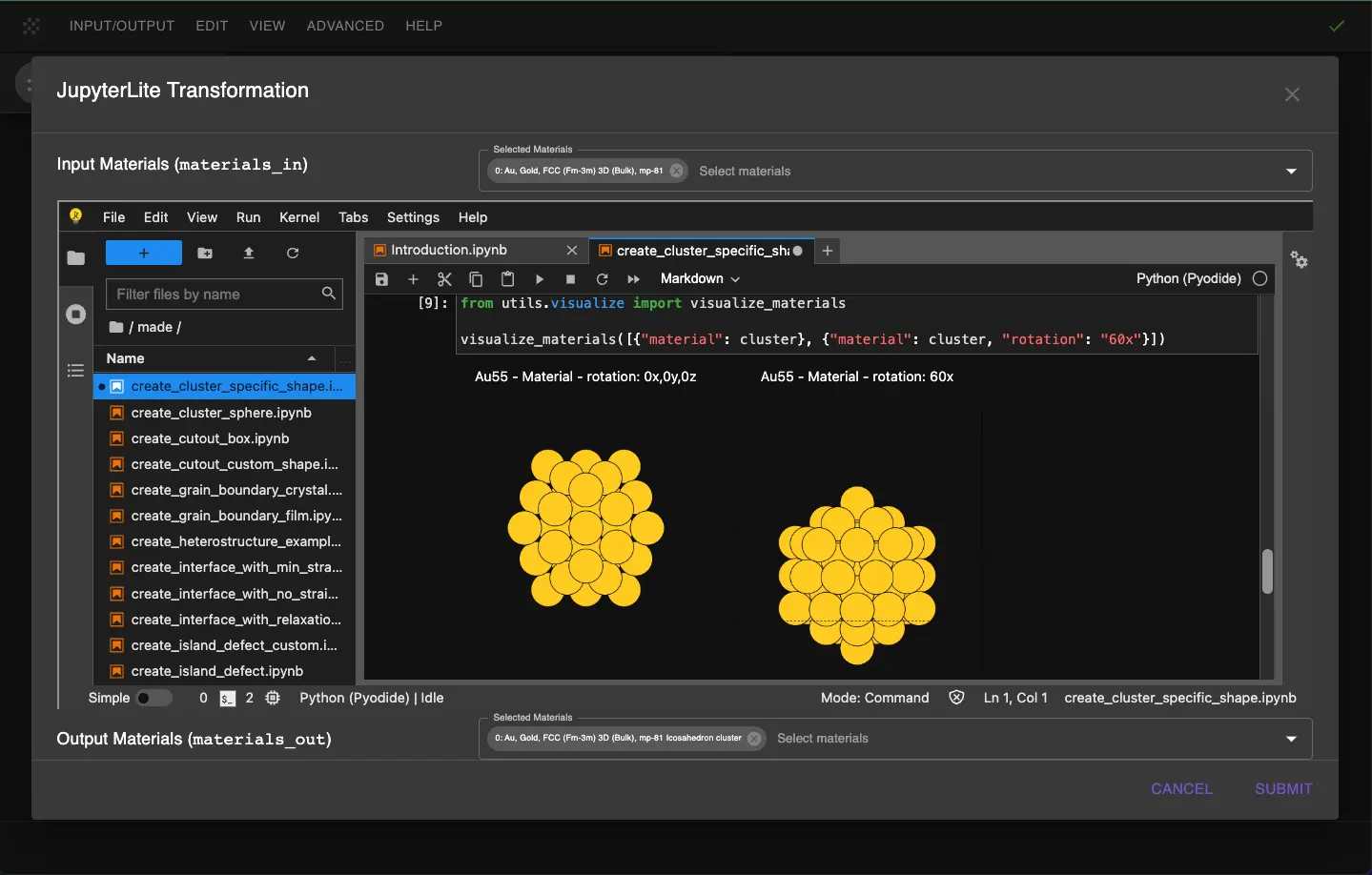

For Icosahedron with 55 atoms:

shape = ASENanoparticleShapesEnum.ICOSAHEDRON
parameters = {
    "noshells": 3
}

For Icosahedron with 147 atoms:

shape = ASENanoparticleShapesEnum.ICOSAHEDRON
parameters = {
    "noshells": 4
}

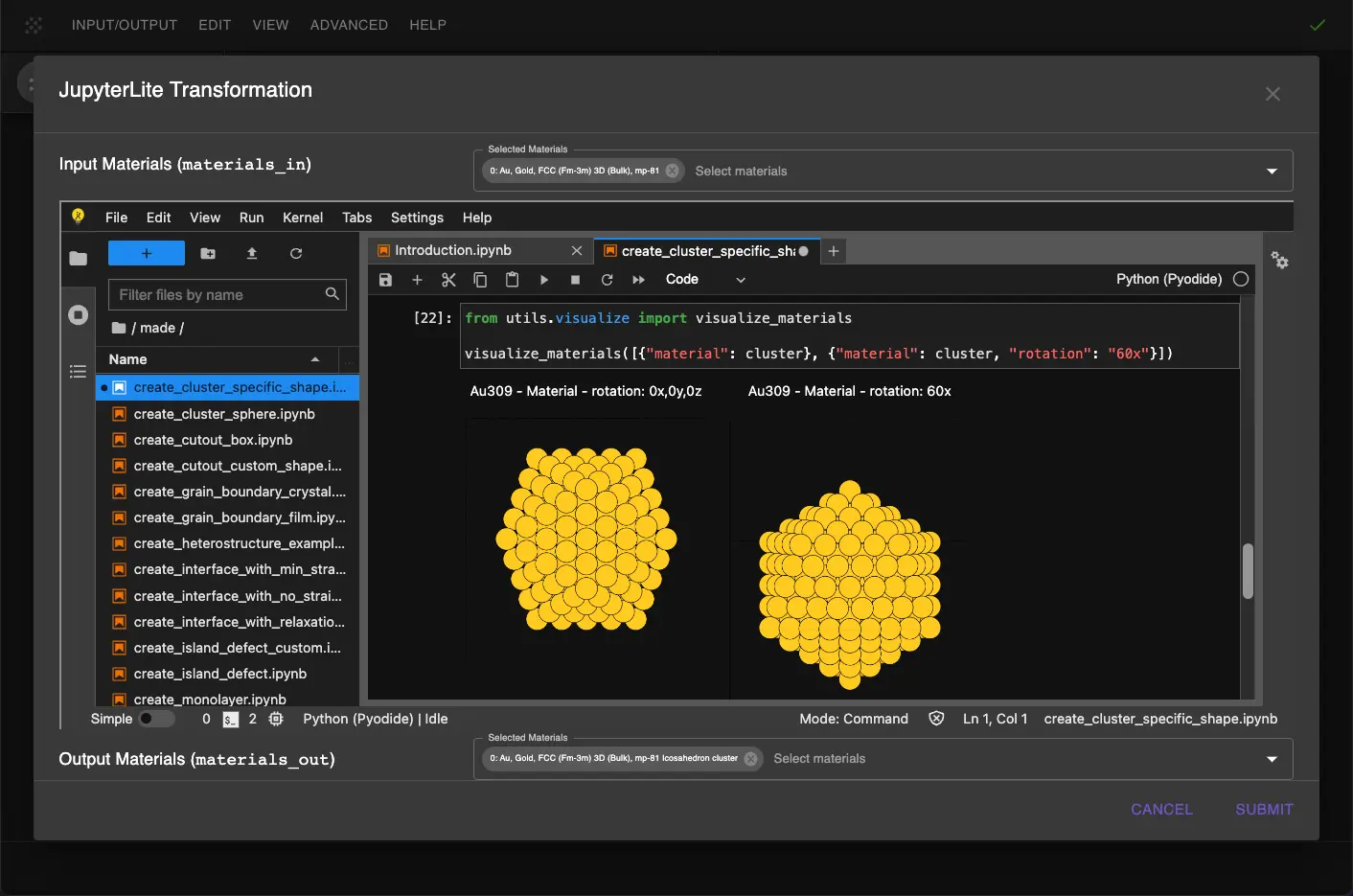

For Icosahedron with 309 atoms:

shape = ASENanoparticleShapesEnum.ICOSAHEDRON
parameters = {
    "noshells": 5
}

Interactive JupiterLite Notebook.

The interactive JupyterLite notebook for creating Gold Nanoclusters can be accessed below. To run the notebook, click on the "Run All" button.

⛶ Full Screen

References.

---

1. Ask Hjorth Larsen, Jesper Kleis, Kristian Sommer Thygesen, Jens K. Nørskov, and Karsten Wedel Jacobsen. Electronic shell structure and chemisorption on gold nanoparticles. Phys. Rev. B, 84(24):245429, 2011. URL: https://doi.org/10.1103/PhysRevB.84.245429. ↩
